Preservation of Quality
Preservation of quality and integrity of the asphalt.

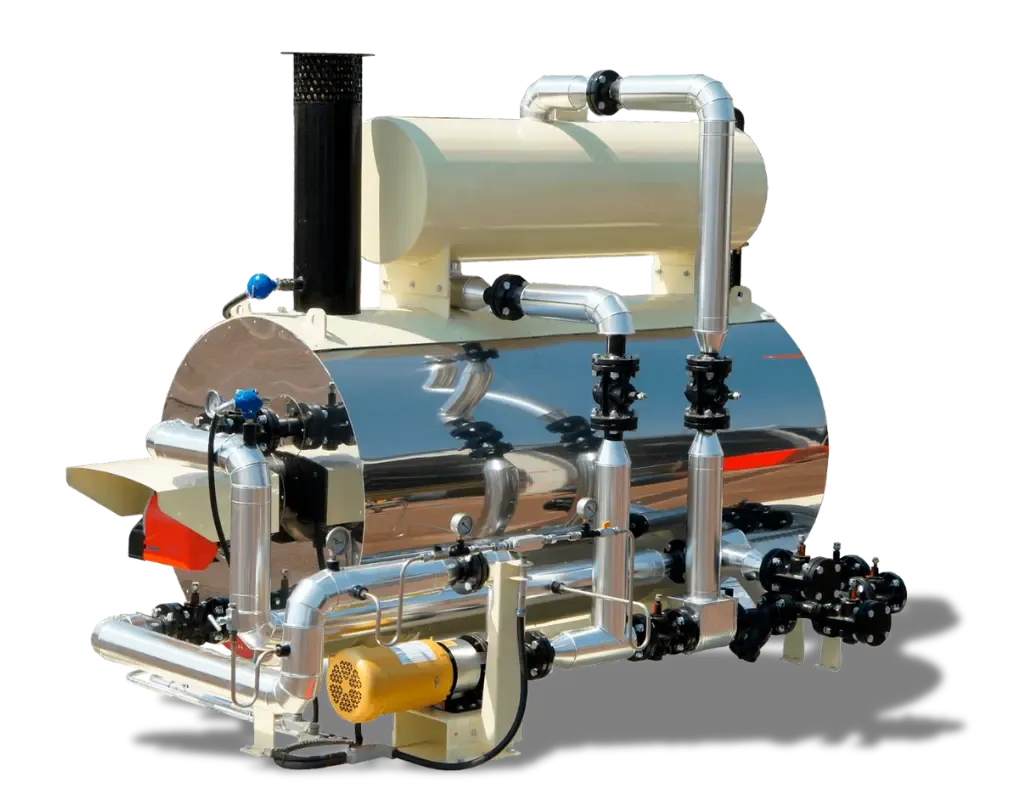

OIL HEATERS
Engineered for precise temperature regulation, our oil heater guarantees uniform heat distribution across the system thanks to its advanced thermal oil circulation technology. This ensures optimal heating performance, preventing hot spots and maintaining temperature consistency throughout the process.
Built with heavy-duty materials and designed for continuous, long-term operation, it’s ideal for demanding industrial applications such as asphalt plants and other heat-intensive systems. In addition to its proven durability, the heater provides outstanding energy efficiency, helping to reduce operating costs while maintaining peak performance even under the toughest conditions.
Intelligent Control Systems that Simplify Your Operation
Beyond storage, our oil heaters are equipped with user-friendly features like automated monitoring systems, real-time data tracking, and efficient unloading mechanisms. These technologies help streamline operations, reduce maintenance, and enhance productivity across the board.
Triaso oil-heaters allow
quick setup
without heavy machinery, ideal for relocatable operations
Preservation of
quality
and integrity of the asphalt.
Streamlines operations with oil
flow control
Long-duration retention
Thermal retention ensures asphalt remains liquid and high-quality for
extended periods
Keep Asphalt Flowing, Keep Profits Growing
Precision Temperature Control:
Maintains exact process temperatures within a ±1°C tolerance, ensuring ideal conditions for material production.
Customizable Heating Capacity:
Available in multiple configurations to meet your project’s specific requirements — from compact operations to large-scale industrial systems.
High-Efficiency Burners:
Equipped with low-NOx technology that minimizes emissions while maximizing fuel efficiency.
Thermal Oil Circulation System:
Delivers uniform heat distribution across the entire system, preventing hot spots and material degradation.
Stand out from the competition by offering the highest-quality mix.

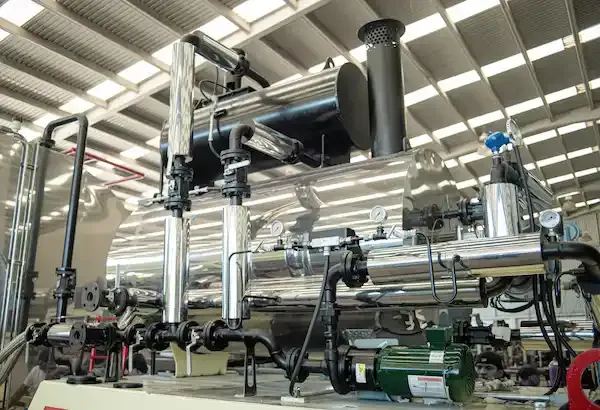

Expansion Tank
Our oil heater ensures uniform heat distribution through advanced thermal oil circulation. It features a built-in expansion tank that absorbs oil volume changes due to temperature, stabilizing pressure and protecting the system for longer, maintenance-free operation.

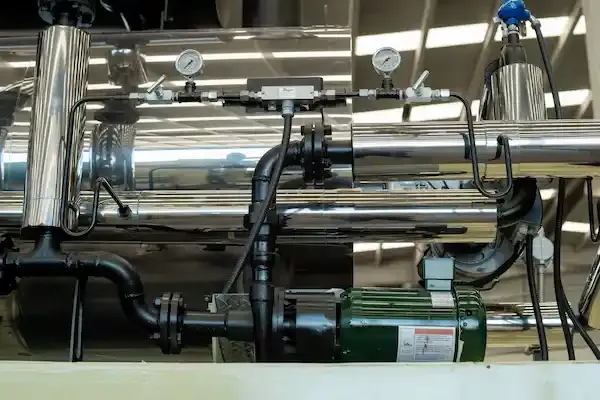

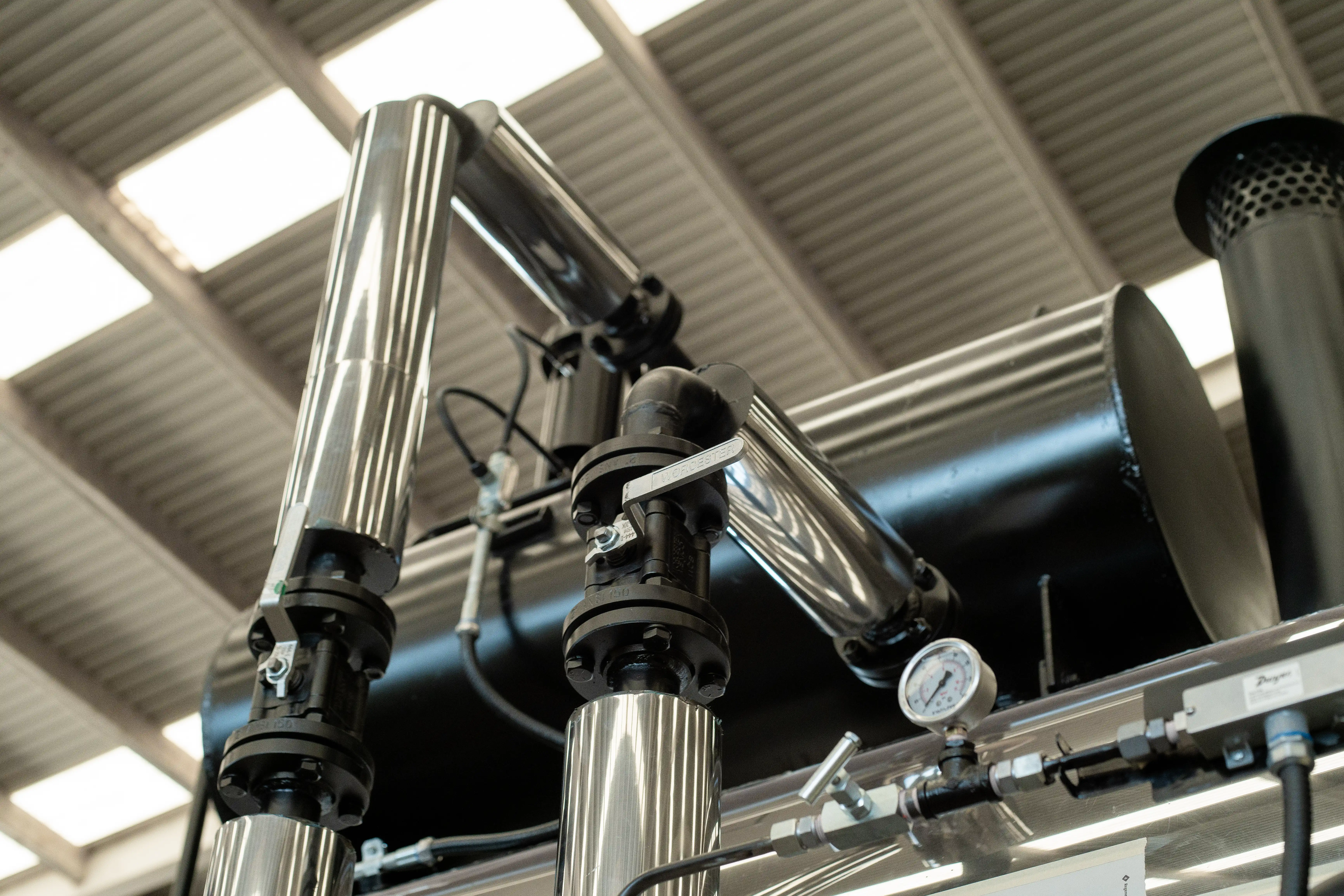

High-Performance Recirculation Pump:
Equipped with a high-performance recirculation pump designed ti maintain a constant flow of thermal oil, ensuring efficient heat transfer. Available with a 10 HP or 15 HP motor depending on system capacity, it is built for continuous operation with minimal maintenance and excellent energy efficiency.

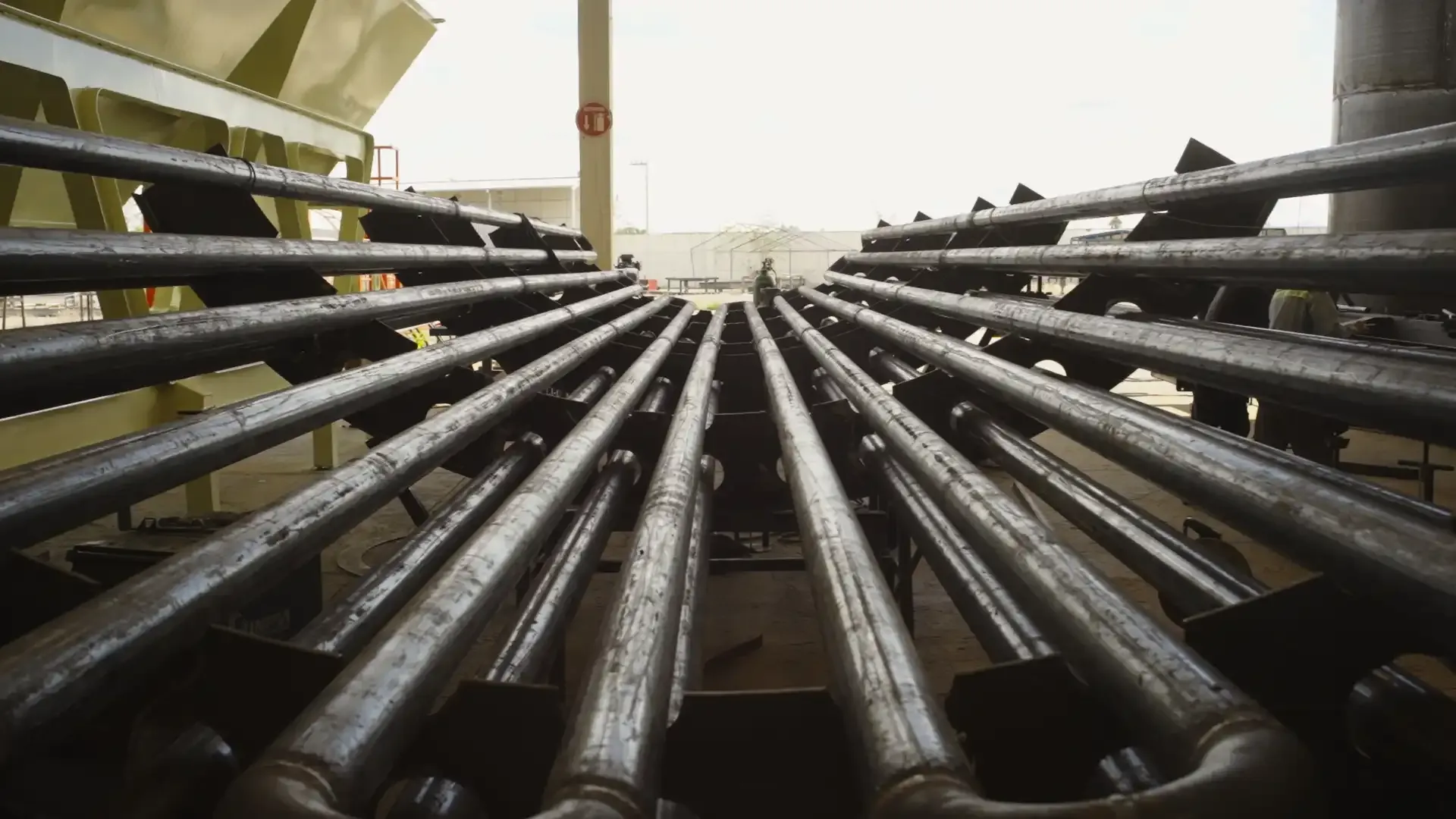

Oil Coils
Inside the thermal oil heater, the coil — or heat exchanger — channels the thermal oil through a tightly wound spiral of steel tubing.The coil is heated indirectly by the burner, transferring energy to the oil without allowing combustion gases to mix with it. Once the oil reaches the target temperature, it circulates through the system to heat the desired application — such as an asphalt tank or other industrial equipment — delivering consistent and efficient thermal performance.
Oil Heaters
Option
available
- Connections for asphalt tanks with coil heating systems
- Thermally insulated with ceramic fiber
- Stainless steel exterior sheet covering
- Equipped with a burner
- Automatic on/off control based on temperature
- Automatic on/off control based on temperature
- Two operating modes: Automatic and Manual
- Siemens PLC-based control system.
- 100% duty cycle
- Includes safety systems and automatic shutdown in case of errors
Digital thermometers with programmable set point for burner activation and shutoff

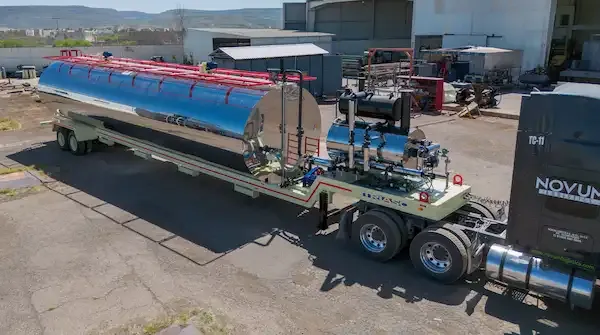

Different Applications
Our oil heaters are designed and manufactured in-house for our asphalt storage tanks, but they are also suitable for a wide range of other applications.

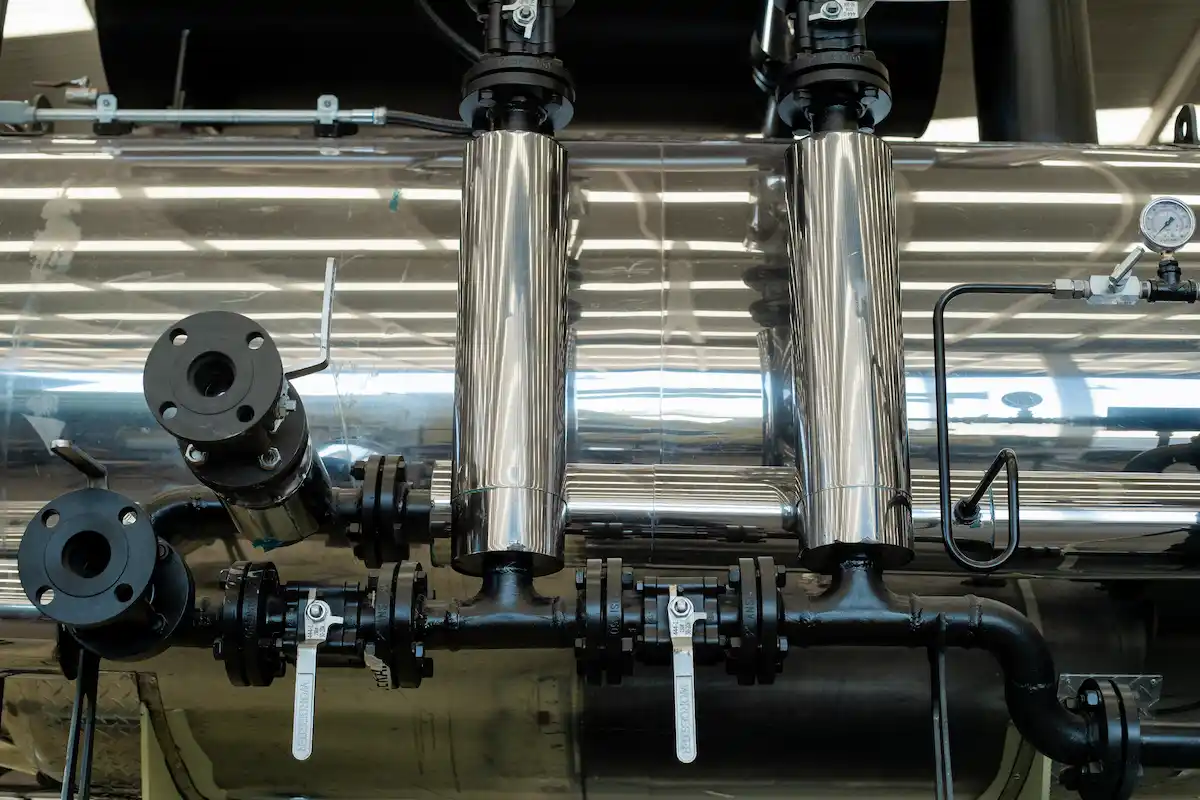

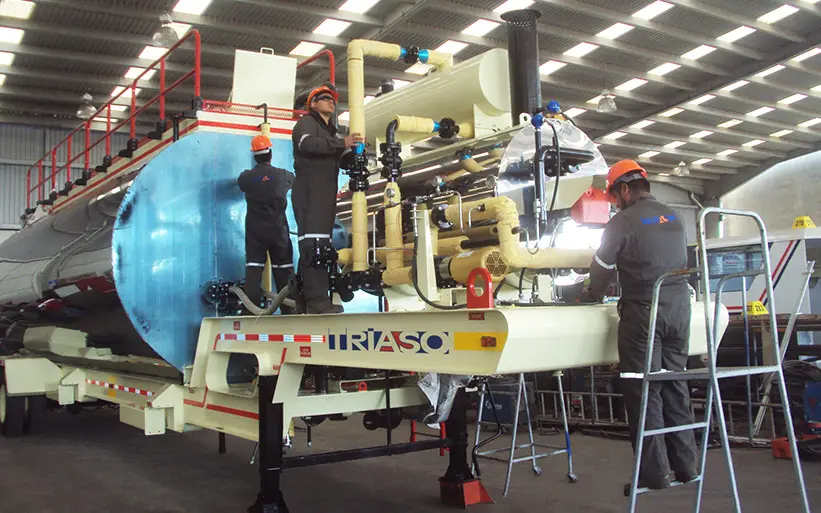

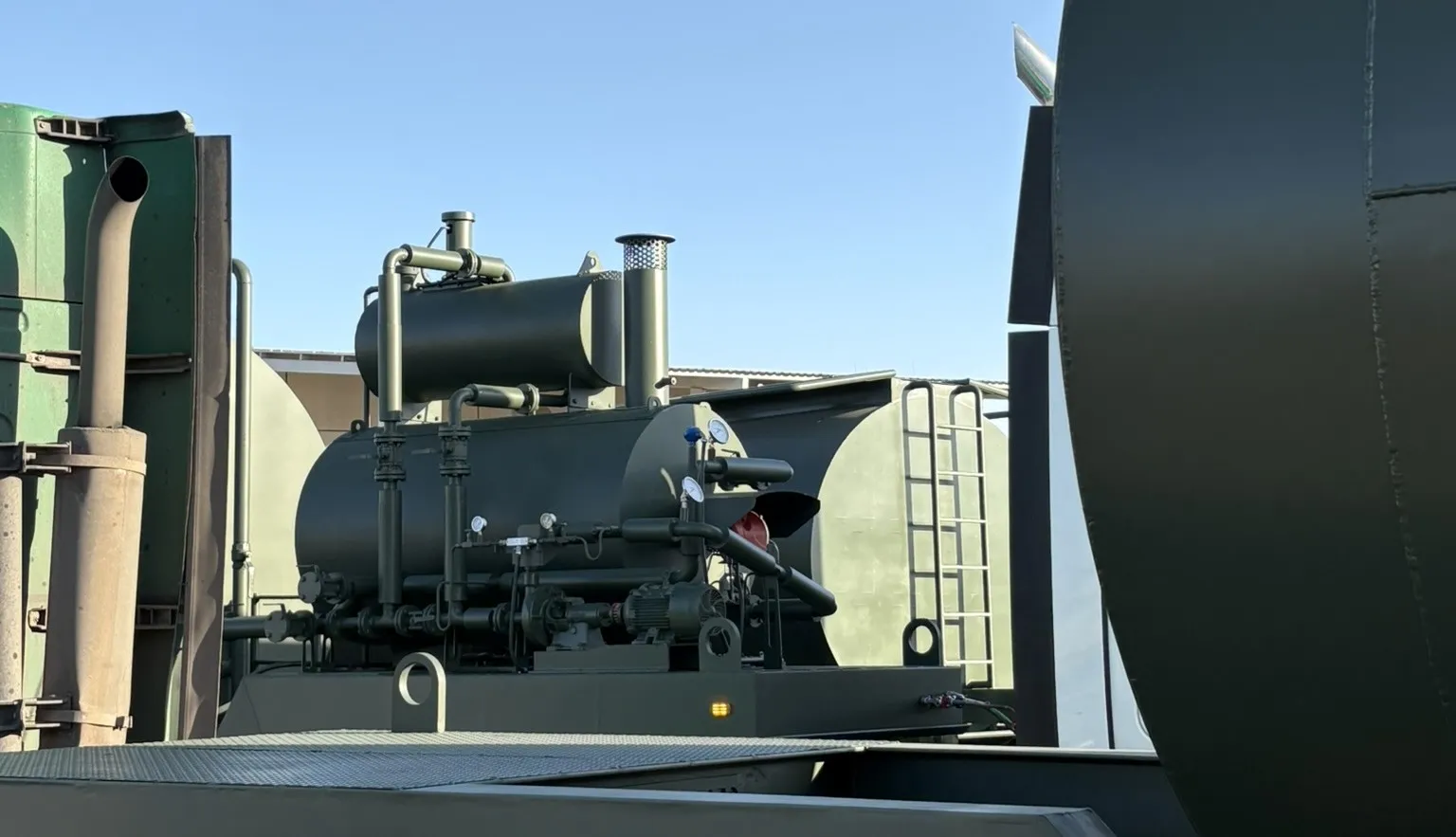

Gallery
Efficient Logistics
Streamlines delivery with automated weighing, ticket printing, and precise material flow control.
Versatile Storage Options
Long-duration thermal retention, ensuring it remains liquid and high-quality for extended periods.
Mobility
Triaso asphalt tanks allow quick setup without heavy machinery, ideal for relocatable operations.
Durability
Built with reinforcerd material, thermally insulated cylinders, and corrosion-resistant finishes.
Seamless Integration
Compatible with asphalt plant systems through protocols like Ethernet Industrial, Modbus, and CANopen.
Enhanced Safety
Equipped with guards, alarms, and visual indicators to protect personnel and equipment.
Cost-Effective
Reduces downtime, transportation costs, and maintenance with efficient design and reliable performance.
Improved Company Image
Industrial aesthetics elevate the visual appeal of your operation.
Customizable
Adaptable features to meet specific project requirements and operational goals.

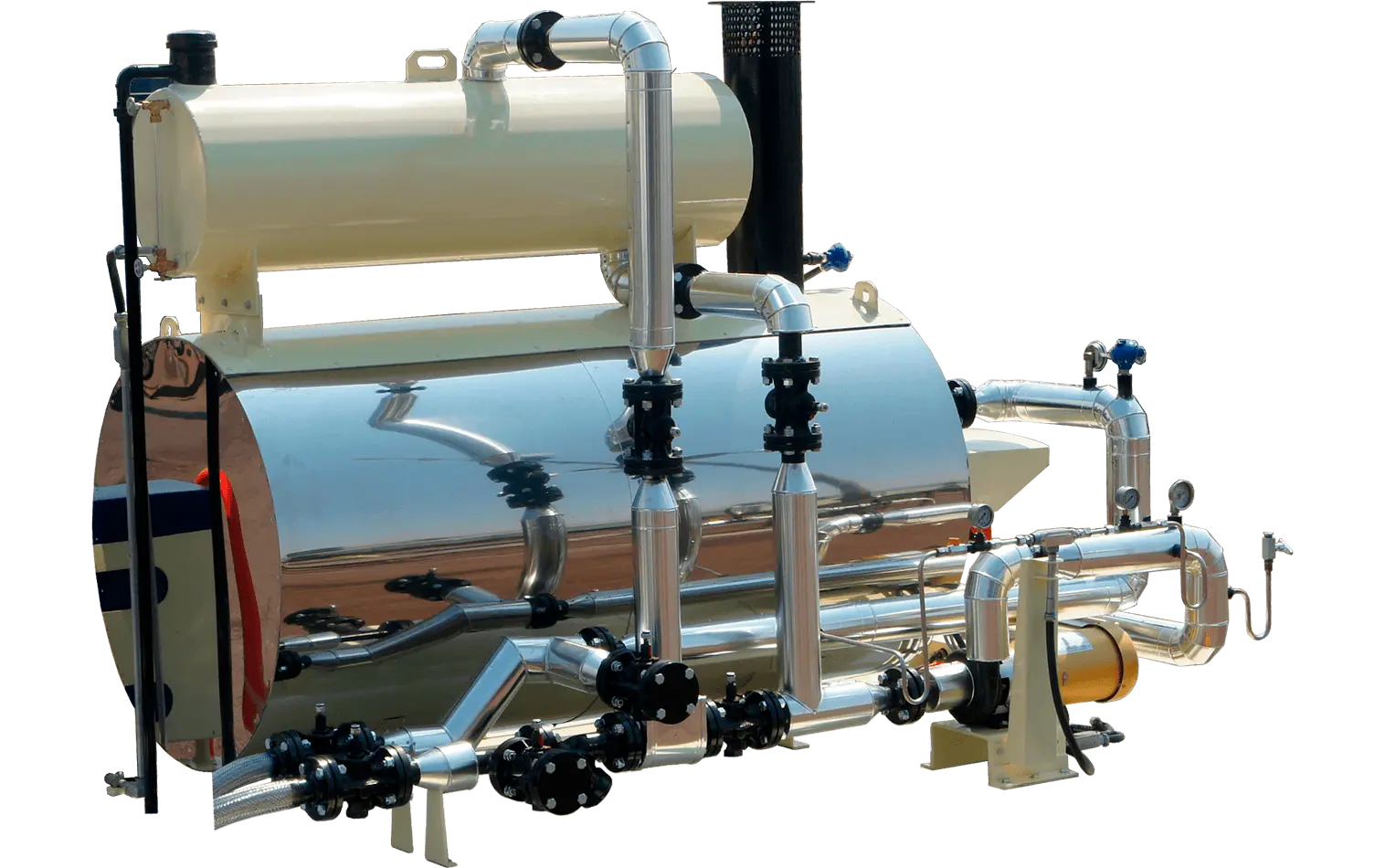

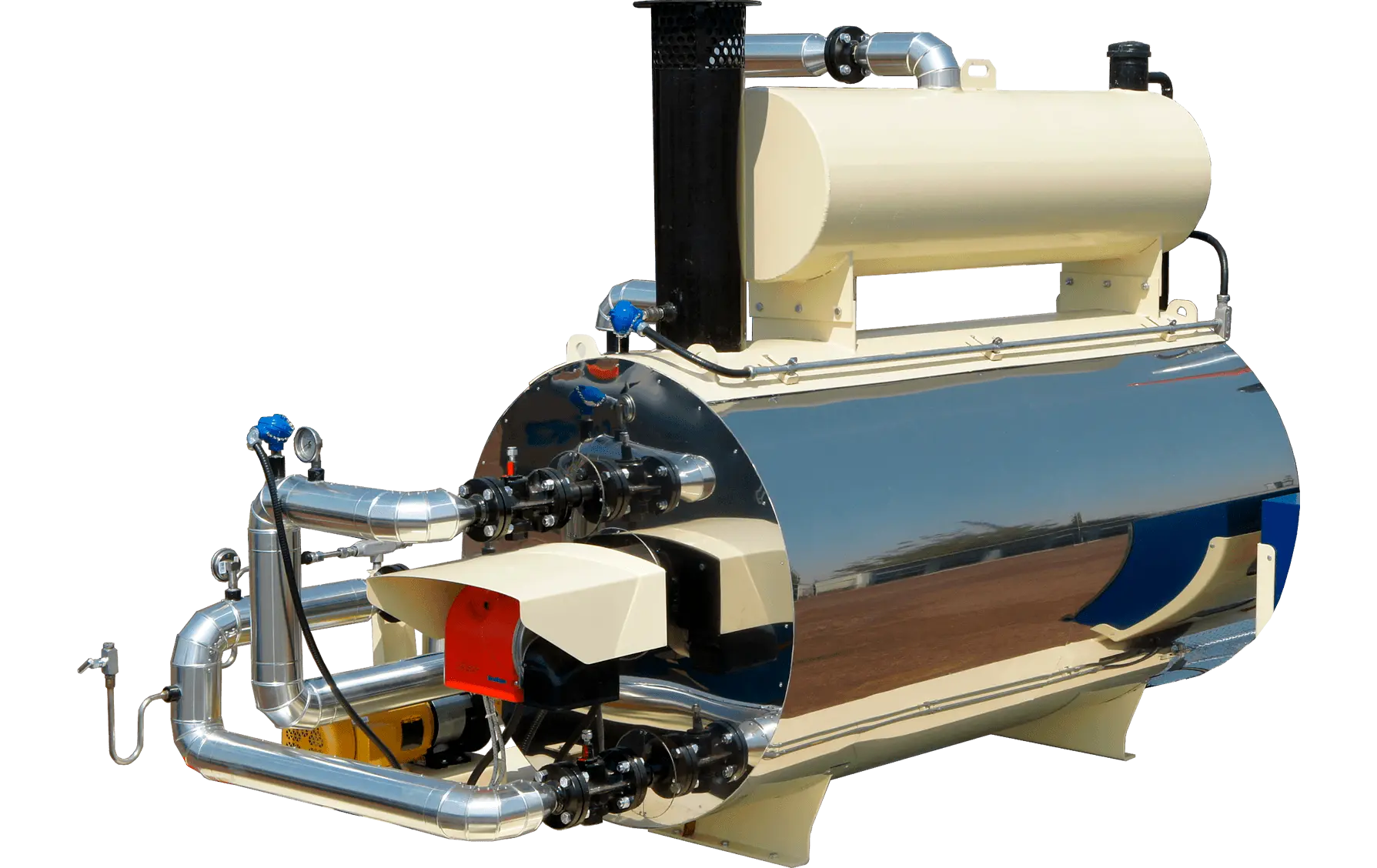

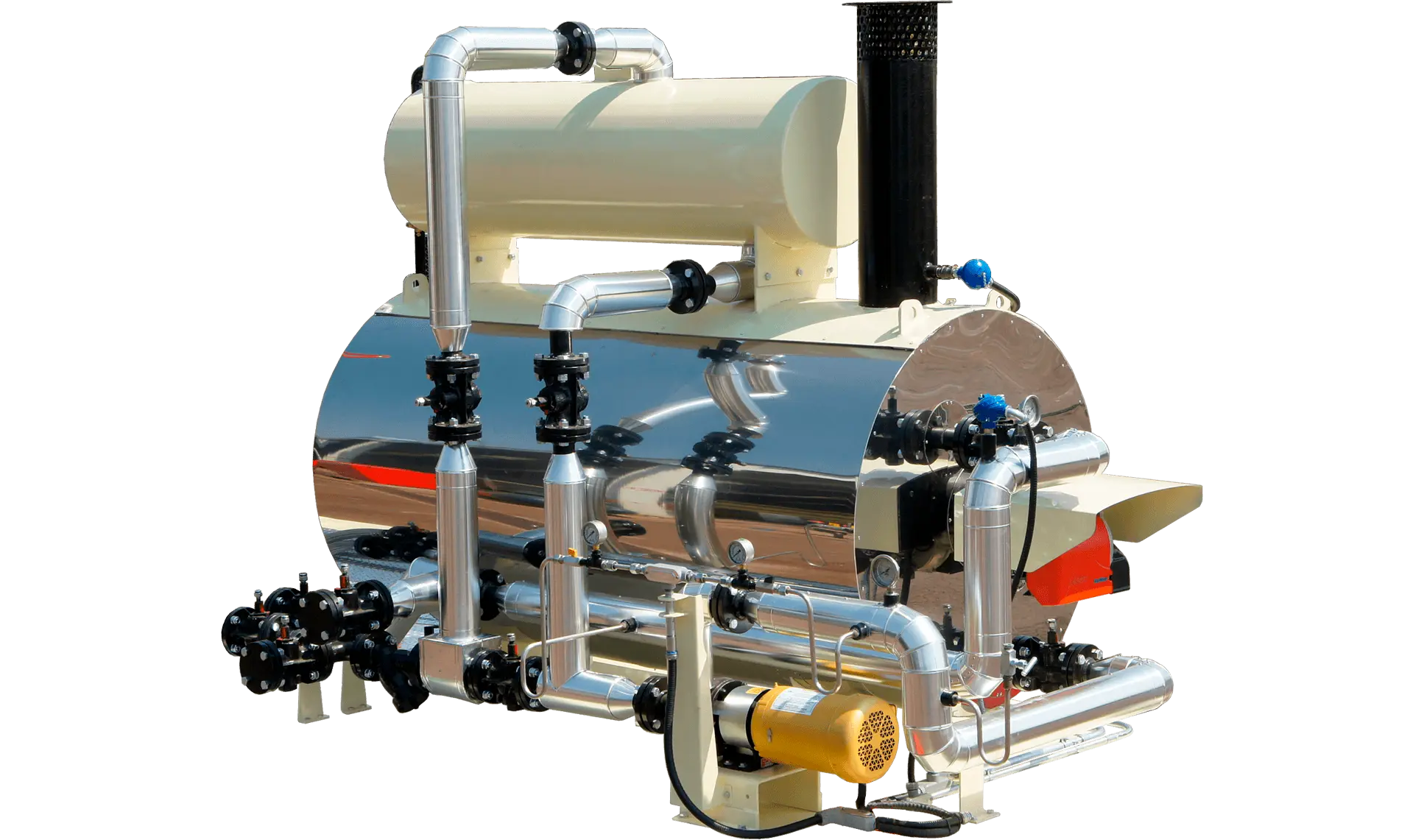

1,000,000 Btu/Hr Oil Heater
1 / 3
Specifications
MEASURE:
IMPERIALMETRIC
Design & Operation
- Industrial design with an aesthetic finish that enhances your company’s image.
- High-quality automotive paint, electrostatically applied and oven-cured.
- Excellent corrosion resistance, strong adhesion, and long-lasting color.
- Galvanized bolts for extended life, easy removal, and clean appearance.
Construction and Materials
- Heavy-duty structure built with reinforced materials for continuous industrial use.
- Internal and external welds fully X-ray inspected.
- Cylinder made of 1/4” A36 steel plate.
- Outer shell made of stainless steel sheet for corrosion resistance.

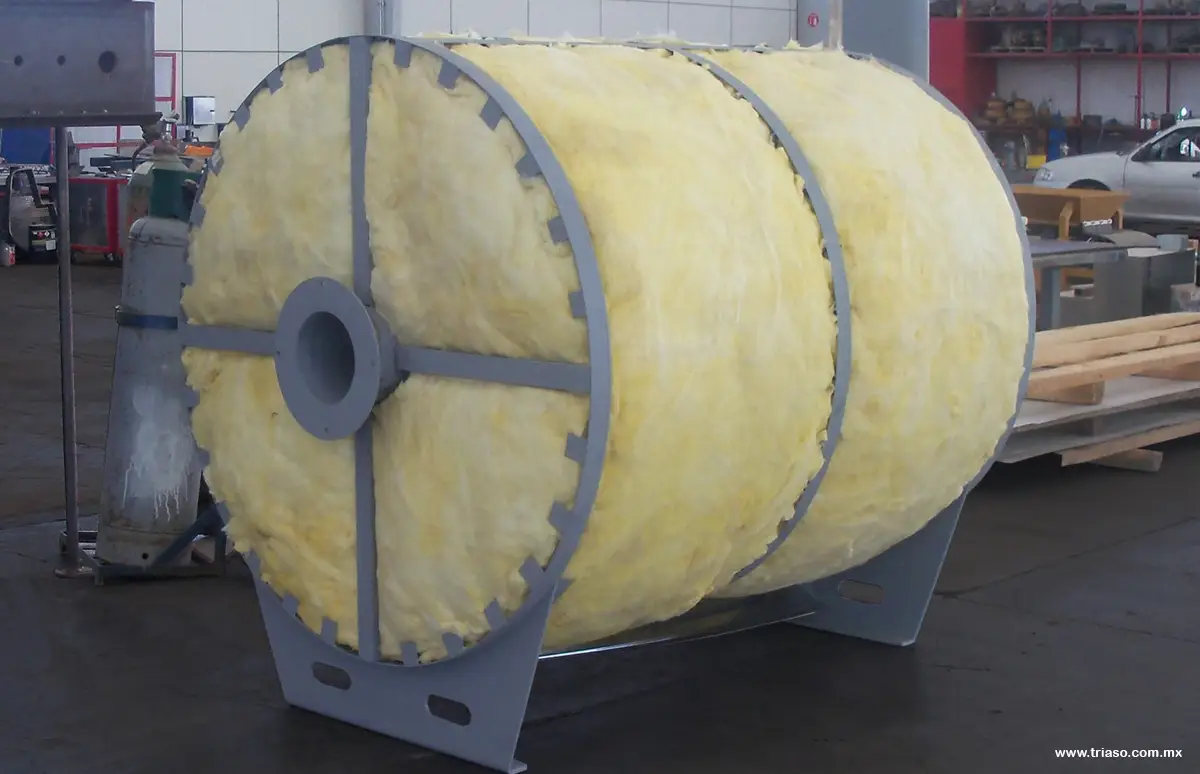

- Thermally insulated with ceramic fiber to minimize heat loss.
- Dual concentric internal coils for greater heat transfer efficiency.
Control and Operation
- Two operation modes: automatic and manual.
- Siemens PLC control system.
- Digital thermometers with programmable set point.
- Burner operation controlled automatically by temperature.
- 100% duty cycle for continuous performance.
Safety and Maintenance
- Safety systems with automatic shutdown in case of failure.
- Protective elements for both equipment and personnel, with proper warning indicators.
- Diesel burner with sealed, easy-to-replace fuel filter system.
- Minimal maintenance required for long-term reliability.
Electrical and Components and Capacity
- Siemens motors, controls, and electrical components.
- Heavy-duty polarized wiring, grounded for motor protection.
- Recirculation pump for thermal oil.
- Pumps:
- 2” pump with 10 HP motor for the 1,000,000 Btu/hr model.
- 3” pump with 15 HP motor for the 2,400,000 Btu/hr model.
Performance and Capacity
- Thermal oil tank capacity: 300 liters.
- Efficient heat transfer through dual-coil design.
- Stable performance under continuous operation.
- Built for maximum durability, reliability, and long service life.
176.0 cm
243.0 cm
355.0 cm

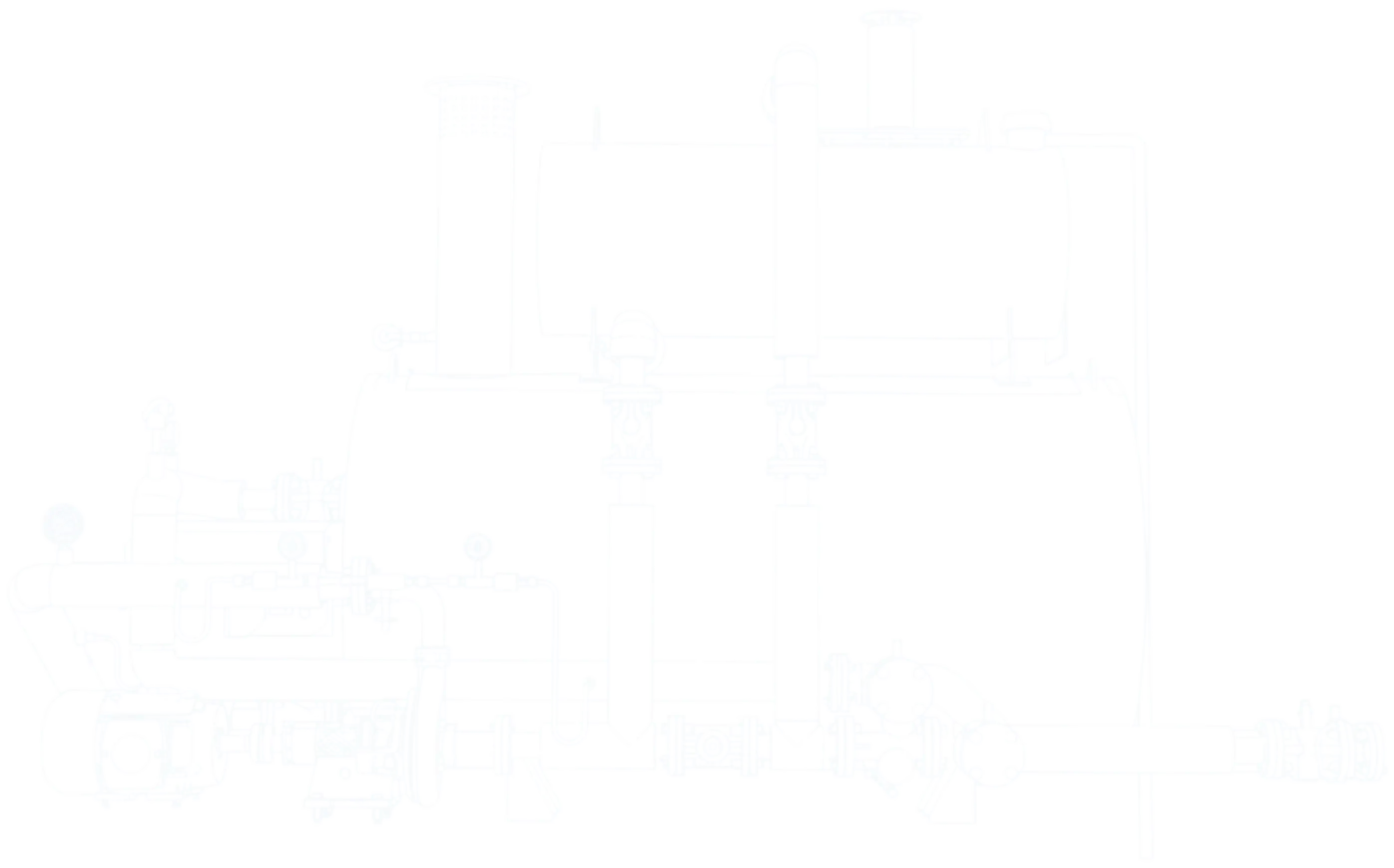

Dimensions
Length
355.0 cm
Width
176.0 cm
Height
243.0 cm
Industrial aesthetics elevate the visual appeal of your operation.
MANUFACTURE
We manufacture directly without subcontractors, ensuring that every part meets our strict quality standards.
SPARE PARTS
Triaso spare parts are precisely designed to ensure optimal performance, extending both the lifespan of the part and the overall equipment.
CUSTOM DESIGN
In addition to our standardized designs, we specialize in providing customized solutions tailored to meet the specific needs of our clients.
