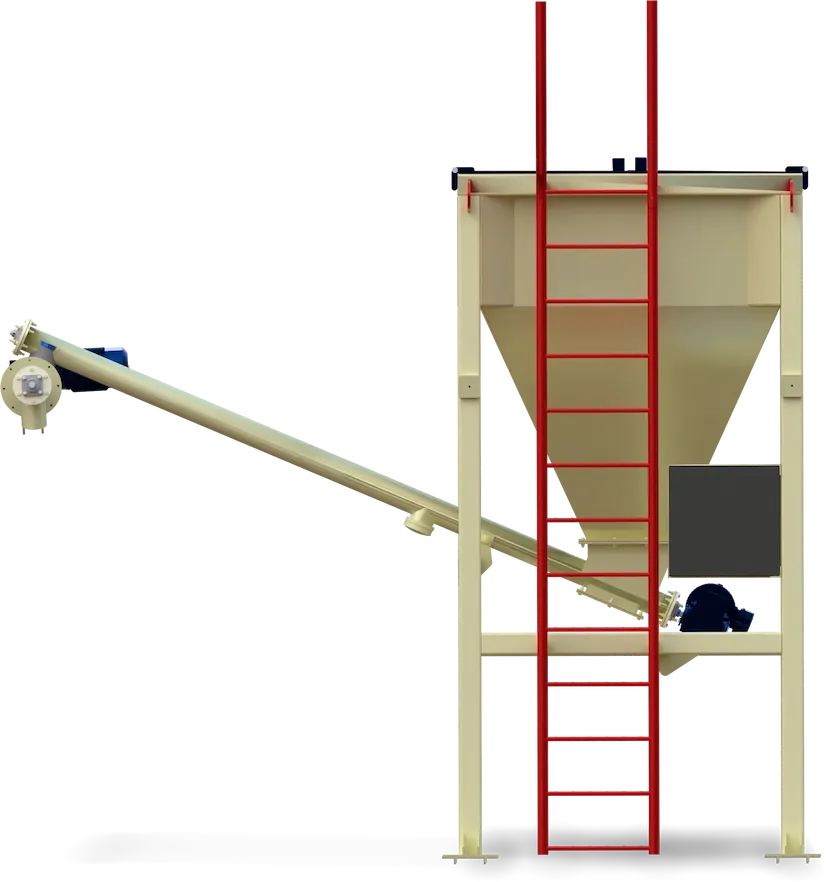

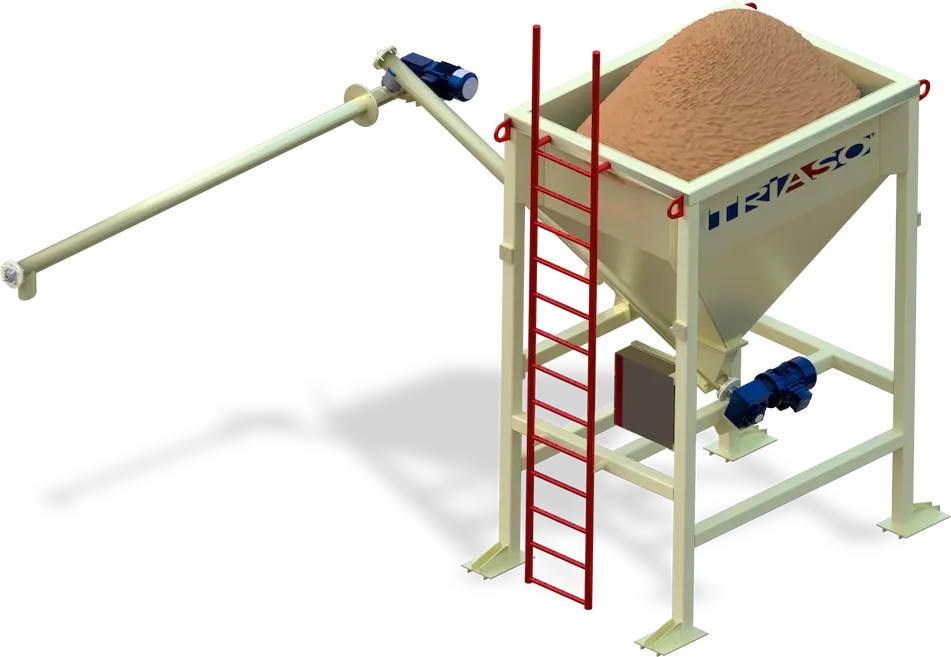

Triaso® Powder
Additives Bins

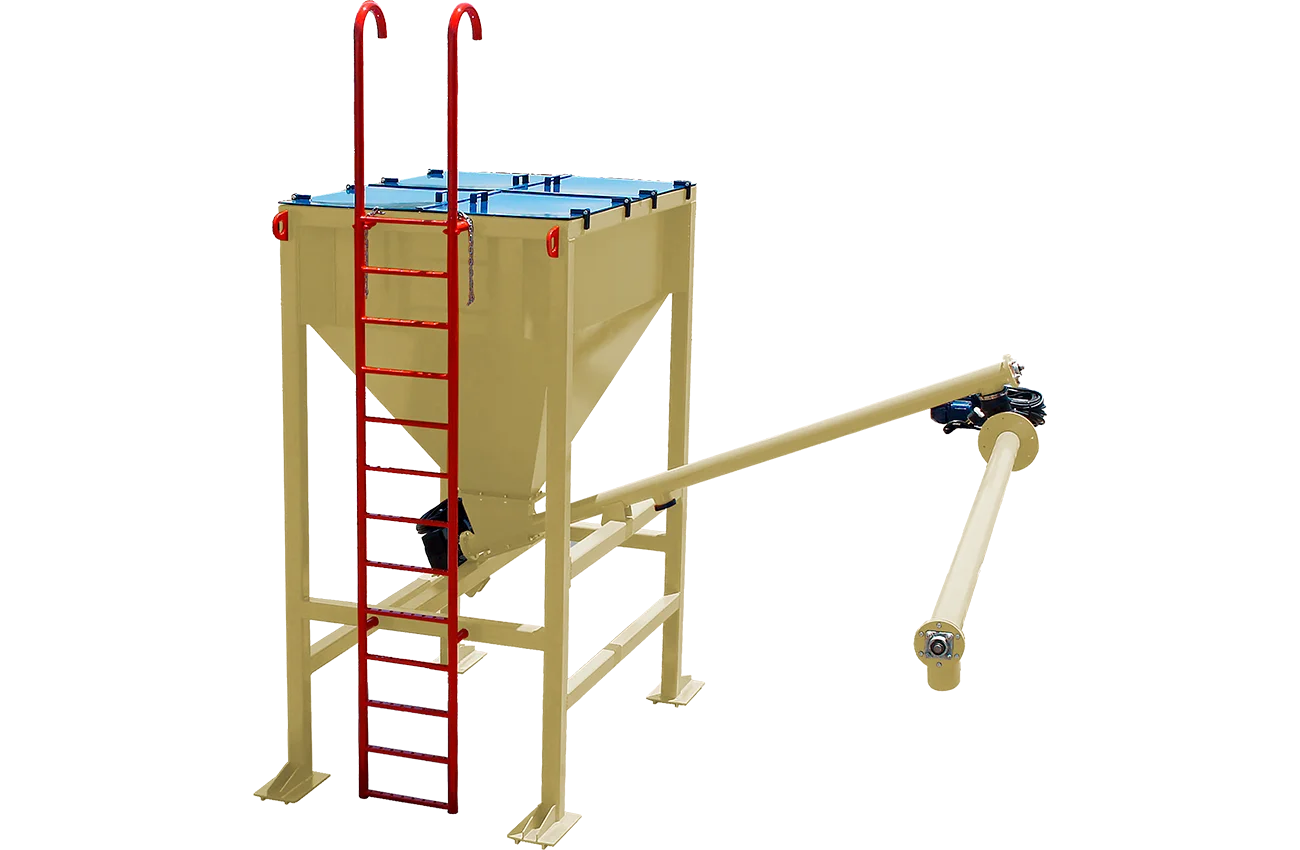

Triaso® Powder Additives Bins are engineered for efficient handling and storage of powder additives across various industrial applications. Designed for optimal storage and transfer of dry, powdered materials, they ensure reliable performance in demanding environments.
Suitable for additives in industries such as asphalt, chemical processing, and manufacturing, these bins feature durable construction and customizable configurations. Their robust design ensures smooth material flow, low maintenance, and long-lasting performance, making them ideal for applications requiring precise dosing and handling of powder additives.
Options to Meet Any Need
Our powder additives offer versatile options such as flow detectors for precise monitoring, level indicators to prevent overflow, and vibrators to ensure smooth material flow. Customizable with bin dividers, extensions, they adapt to diverse material handling requirements, delivering efficiency and reliability in any application.
Adjustable-Speed Screw Feeder for Efficient Material Handling
The screw feeder is an adjustable-speed unit, designed to control the flow of materials between 3 and 7 kg/min. Made from durable steel, it consists of two sections: one for dosing the material and another for feeding it, both equipped with high-power motors to ensure efficient and reliable operation.

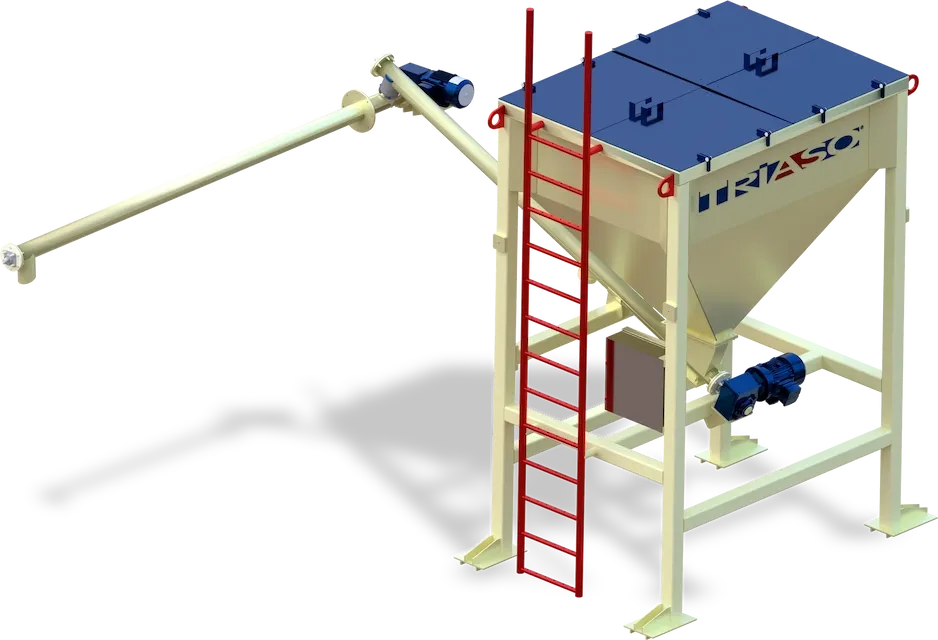

Bin lids
Built-in bin lids keep the powder dry and protected from dust and other contaminants in industrial environments. — maintaining material integrity even on windy days.
Choose life-lasting components for long-term performance and return on investment
Common Powder Additives
in Industrial Applications
- Cellulose
- Cement
- Lime
- Ash
- Silica
- Metals
- Graphite
- Gypsum
- Clay
- Talc
- Alumina
- Carbon
- Dolomite
- Barium
Powder additives Feeder
Specifications
MEASURE:
FEEDING & DOSING SYSTEM
- Screw feeder manufactured with 1045 steel
- Variable speed dosing screw, adjustable from 3 to 7 kg/min
- Vibrator to ensure consistent feed
- Low-level alarm sensor
- Direct discharge into the mixing drum
- Vibrators in fine aggregate bin to ensure consistent feed
COMPONENTS & ELECTRICAL
- Industrial-grade motors, components, and Siemens wiring.
- Siemens motors: 3 Hp (dosing) and 1.5 Hp (feeding)
- Simplified wiring system for easy maintenance.
- Weather-protected electrical connections.
- Pulley-and-bushing drive system.
- External fuel lines, sensors, and signal cabling pre-installed.
PORTABILITY
- Designed for relocation
- Option for:
- Mounted on standard transport chassis with one axle and 16” highway-rated wheels.
- Bilt-in fifth wheel means no lowboy is required.
- Pull-type hitch with safety coupling and brake system.
- Bolt-on support legs for fast on-site assembly.
- DOT-compliant lighting and reflective markings for transport visibility.
- Setup requires no crane or hoisting equipment.
CONTROL & OPERATION
- Fully automatic or manual operation
- Digital monitoring of all operating parameters, with real-time supervision and historical data reports.
- Remote monitoring system accessible from computers, tablets, and smartphones.
- Alarm and interlock system for out-of-range conditions.
- Independent, intuitive controls designed for field reliability.
- Adaptable to existing asphalt plant control infrastructure
- Seamless integration to central control systems
DURABILITY & SAFETY
- High-strength, reinforced structure for long-term heavy-duty operation
- Bolted components with anti-corrosion coating
- Galvanized bolts and electrostatic paint ensure long-lasting durability and excellent adhesion.
- Dust-resistant housing protects control module.
COMPLIANCE WITH INDUSTRY STANDARDS
- EPA
- OSHA
- DOT
- UL wiring
378.0 cm
192.0 cm
394.0 cm
470.0 cm
240.0 cm
BIN DIMENSIONS
Length:
315.0 cm (dosing section)
350.0 cm (feeding section)
Screw Diameter::
106.7 cm
Height:
121.9 cm
Bin Capacity:
2.6 m³ (level filled)
Industrial aesthetics elevate the visual appeal of your operation.
MANUFACTURE
We manufacture directly without subcontractors, ensuring that every part meets our strict quality standards.
SPARE PARTS
Triaso spare parts are precisely designed to ensure optimal performance, extending both the lifespan of the part and the overall equipment.
CUSTOM DESIGN
In addition to our standardized designs, we specialize in providing customized solutions tailored to meet the specific needs of our clients.
